Normal Twist Maillon rapide

Normal Twist Maillon rapide

Direction of loading Scheme Normal Twist Maillon rapide

Scheme Normal Twist Maillon rapide

Application

Product request

Quote:
for quote request, insert quantity in the chart below before clicking on the basket.

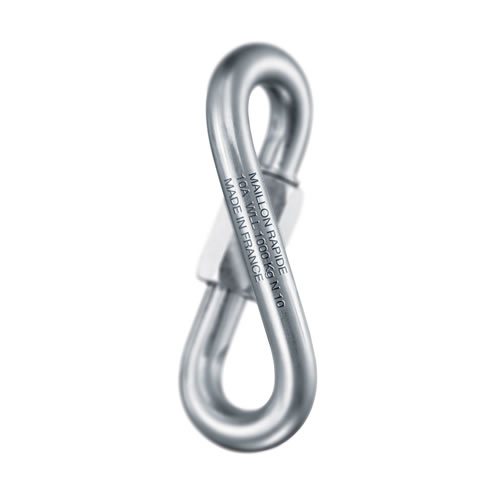

Fitted with a 90° twist allowing smoother orientation of any part.

Zinc plated steel

Reference	Diameter		Dimensions - mm						Weight	WLL	BL	Quote
Reference	mm	inches	L.T.	L.I.	A	O	E	T	g	kg	kg	Qty
MRNZ07.0 Twist	7	9/32"	72	58	16,5	8,5	21,5	10	58	500	2500
MRNZ10.0 Twist	10	7/16"	97	77	20	12	29	13	152	1000	5000

*WLL: Working load limit
*BL: Breaking load.
