Standard EN Maillon rapide

Standard EN Maillon rapide

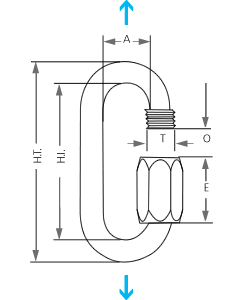

Direction of loading Scheme Standard EN Maillon rapide
Material Tightening
torque Recommendation

Application

Product request

Quote:
for quote request, insert quantity in the chart below before clicking on the basket.

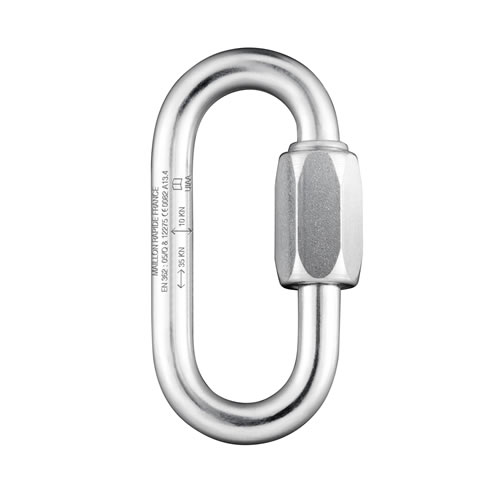

The original oval shape was developed on the principle of a chain link fitted with manual nut opening. This shape reflects the spirit of Maillon Rapide quick links connectors.

Reference Diameter Dimensions - mm Weight BL Quote
mm inches H.T. H.I. A O E T g kN Qty
MRNZ08.0 EN 8 5/16" 74 58 17,5 11 24 11 77 35 kN
MRNZ09.0 EN 9 3/8" 80 62 19 11 26 12 103 45 kN
MRNZ10.0 EN 10 7/16" 89 69 20,5 12 29 13 137 55 kN
Reference Diameter Dimensions - mm Weight BL Quote
mm inches H.T. H.I. A O E T g kN Qty
MRNI07.0 EN 7 9/32" 66 52 16 8,5 21,5 10 52 45 kN
MRNI08.0 EN 8 5/16" 74 58 17,5 11 24 11 79 55 kN
MRNI10.0 EN 10 7/16" 89 69 20,5 12 29 13 141 90 kN
Reference Diameter Dimensions - mm Weight BL Quote
mm inches H.T. H.I. A O E T g kN Qty
MRNZIC10.0 EN 10 7/16" 89 69 20,5 12 29 13 49 25 kN

*BL: Breaking load.
