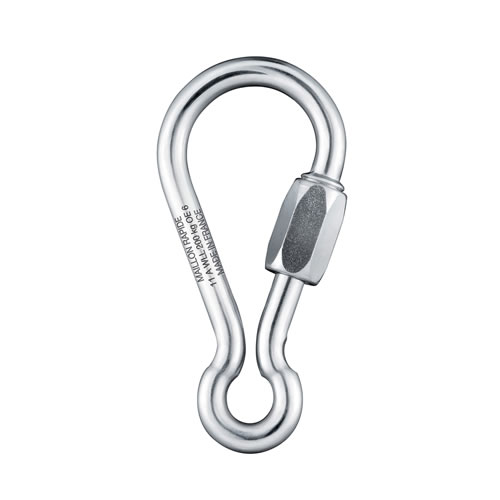

Eyelet Maillon rapide

Eyelet Maillon rapide

Direction of loading Scheme Eyelet Maillon rapide

Scheme Eyelet Maillon rapide

Application

Product request

Quote:
for quote request, insert quantity in the chart below before clicking on the basket.

Eyelet shape: wire rope may be kept into the lower ring for a permanent connection.

Zinc plated steel

Reference	Diameter		Dimensions - mm										Weight	WLL	BL	Quote
Reference	mm	inches	L.T.	L.I.	L.O.	H.T.	H.I.	O	E	R1	R2	T	g	kg	kg	Qty
MROEZ03.0	3	7/64"	20	14	11	44	38	4	9	2,5	7	4	7	32	160
MROEZ03.5	3.5	1/8"	23	16	13	51	44	5	11	3	8	5	11	56	280
MROEZ04.0	4	5/32"	28	20	15	59	51	5,5	12,5	3,5	10	6	16	80	400
MROEZ05.0	5	3/16"	33	23	18	68	58	6,5	16	4	11,5	7	28	120	600
MROEZ06.0	6	1/4"	39	27	21,5	80	68	7,5	19	4,75	13,5	9	46	200	1000
MROEZ07.0	7	9/32"	43	29	24,8	89	75	8,5	21,5	5,5	14,5	10	68	320	1600
MROEZ08.0	8	5/16"	47	31	28,5	97	81	10	24	6,25	15,5	11	100	480	2400

*WLL: Working load limit
*BL: Breaking load.
