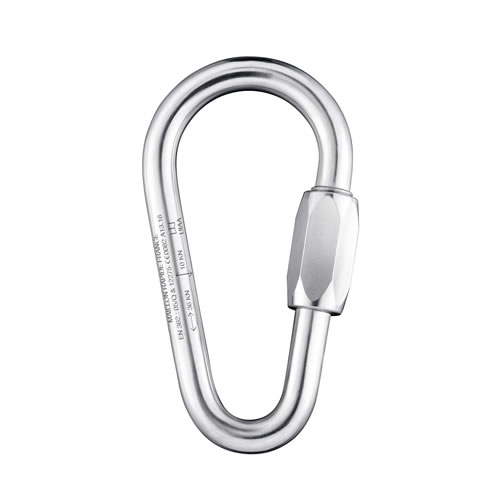

Pear Shape EN Maillon rapide

Pear Shape EN Maillon rapide

Direction of loading Scheme Pear Shape EN Maillon rapide

Scheme Pear Shape EN Maillon rapide

Recommendation

Application

Product request

Quote:
for quote request, insert quantity in the chart below before clicking on the basket.

Pear shape: fitted with same nut opening as large opening quick links; its curved shape allows smooth connection of several parts together.

Zinc plated steel

Reference	Diameter		Dimensions - mm									Weight	BL	Quote
Reference	mm	inches	L.T.	L.I.	H.T.	H.I.	O	E	R1	R2	T	g	kN	Qty
MRPZ10.0 EN	10	7/16"	63,5	43,5	118	98	20,5	36	10,25	21,75	13	183	36 kN
MRPZ12.0 EN	12	1/2"	76	52	144	120	23,5	43	11,75	26	15	321	44 kN

*BL: Breaking load.
