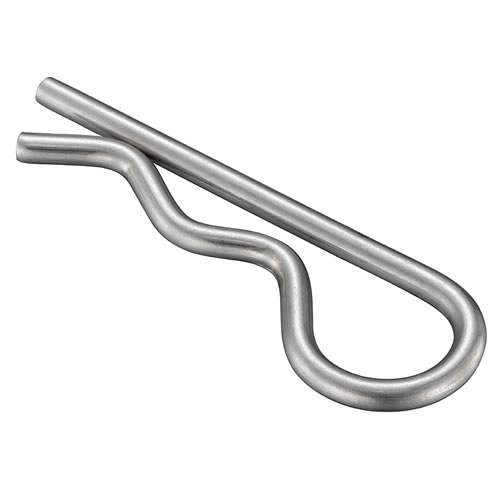

Beta Pin

Beta Pin
Scheme Beta Pin

Application

Product request

Quote:
for quote request, insert quantity in the chart below before clicking on the basket.

Mechanical assembly of drilled parts.

Reference Diameter Dimensions - mm Weight Quote
mm inches L h Ø axe g Qty
GBZB02.0 2 5/64" 48 15 8 to 12 2
GBZB02.5 2.5 3/32" 53 18 8 to 14 4
GBZB03.0 3 7/64" 60 21 10 to 15 7
GBZB04.0 4 5/32" 78 28 15 to 20 15
GBZB04.5 4.5 11/64" 102 34 20 to 22 28
GBZB05.0 5 3/16" 103 34 20 to 25 32
GBZB06.0 6 1/4" 103 36 25 to 30 49
GBZB07.0 7 9/32" 164 55 30 to 45 105

* Bichromate zinc plated steel available while stocks last

Reference Diameter Dimensions - mm Weight Quote
mm inches L h Ø axe g Qty
GBI02.0 2 5/64" 48 15 8 to 12 3
GBI02.5 2.5 3/32" 53 18 8 to 14 4
GBI03.0 3 7/64" 60 21 10 to 15 8
GBI04.0 4 5/32" 78 28 15 to 20 16
GBI04.5 4.5 11/64" 102 34 20 to 22 27
GBI05.0 5 3/16" 103 34 20 to 25 33
GBI06.0 6 1/4" 103 36 25 to 30 52
