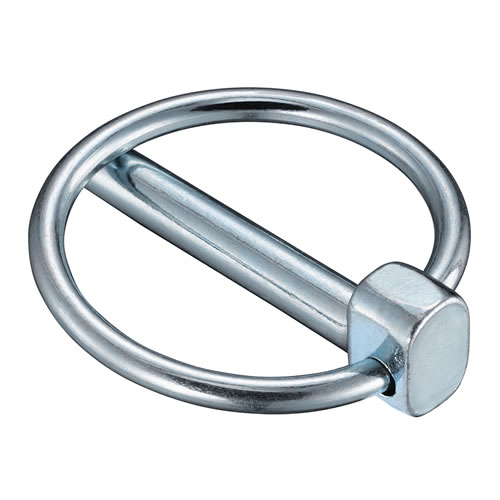

Zinc plated steel Linchpin

Zinc plated steel Linchpin
Scheme Zinc plated steel Linchpin

Application

Product request

Quote:
for quote request, insert quantity in the chart below before clicking on the basket.

Mechanical assembly of axis or drilled tubes. To be fitted at the end of axis.

Reference Diameter Dimensions - mm Weight Quote
mm inches A H g Qty
GCZB04.5×40 4.5 11/64" 34 40 20
GCZB06.0×40 6 1/4" 34 40 24
GCZB06.0×45 6 1/4" 34 45 25
GCZB08.0×40 8 5/16" 34 40 30
GCZB08.0×45 8 5/16" 34 45 32
GCZB09.0×45 9 3/8" 34 45 39
GCZB10.0×40 10 7/16" 34 40 42
GCZB10.0×45 10 7/16" 34 45 45
GCZB11.0×40 11 29/64" 34 40 45
GCZB11.0×45 11 29/64" 34 45 50

* Bichromate zinc plated steel available while stocks last
